Hydraulic Cylinder Components Made to Your Drawing
Honed tube, hard chrome plated piston rods, pistons, glands, clevises and welded assemblies for cylinder manufacturers, mobile equipment OEMs and hydraulic repair shops.
COMPONENT RANGE
Eight component families
Every part is made to a customer drawing. We do not hold a standard catalogue, and we do not substitute material grades or skip a process step without written agreement.
Pistons & Glands

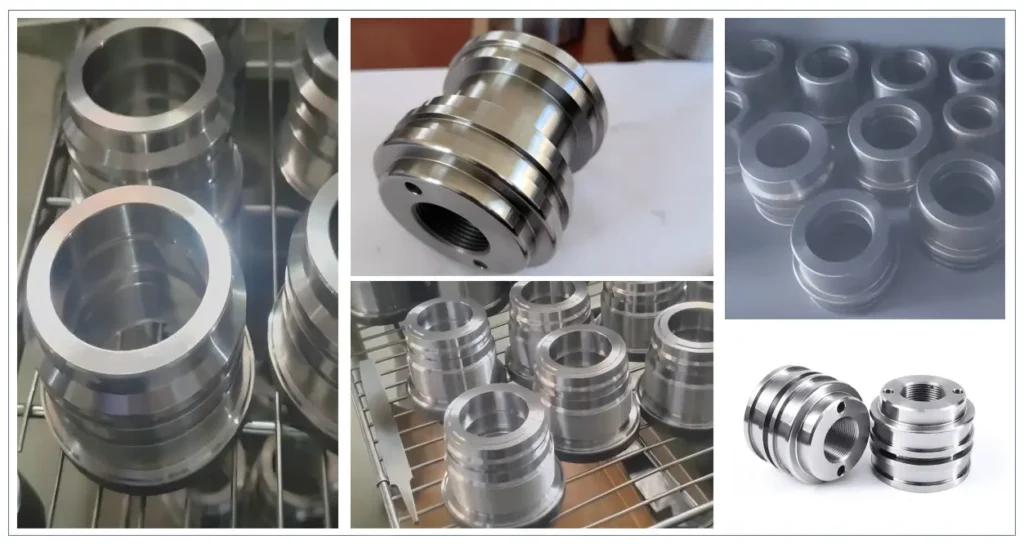

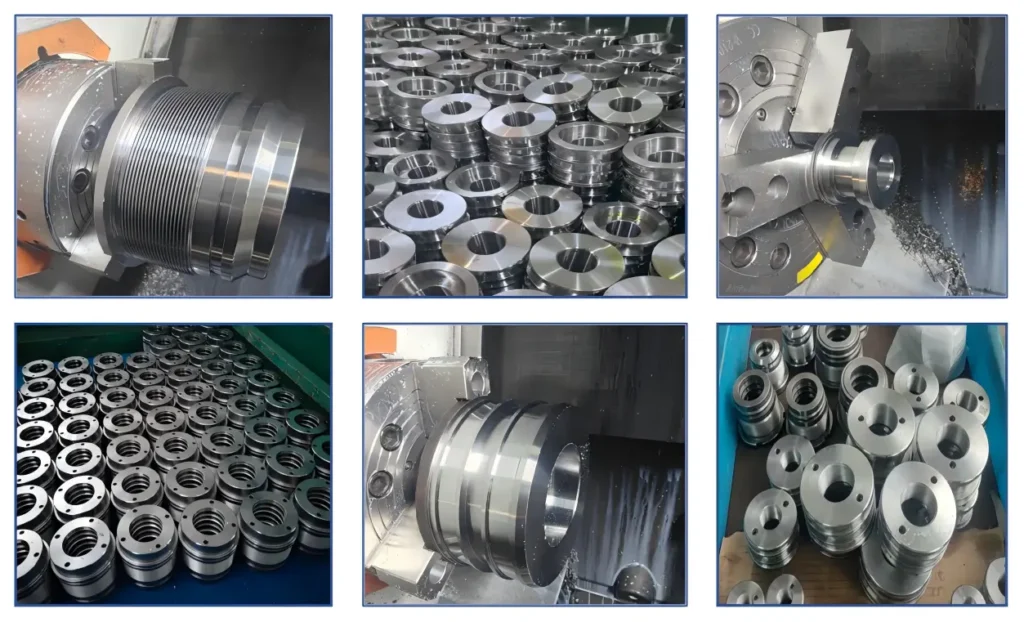

Turned pistons,gland bushes and end caps with seal grooves cut to the seal maker’s published housing dimensions.
— Groove geometry to seal supplier data
— Wear-ring seats machined in the same set-up
— Thread and port features as drawn
Cylinder Tube & Barrels
Honed, or skived and roller burnished, cylinder tube in cold-drawn seamless and welded-and-drawn grades.
— lD40 to 500mm, up to 8m
— H8 standard, Ra 0.2 to 0.8 μm
— E355 / ST52 / SAE 1026 class grades
Valve Blocks
CNC machined hydraulic valve blocks in steel, stainless and aluminium, with cartridge and sandwich cavities cut to ISO 7368, DIN 24342 and ISO 4401.
— Steel, stainless,aluminium
— Cartridge and sandwich cavities
— Port threads BSPP, NPT, metric, SAE.
Specification
Cylinder Heads & End Caps
Cap-end and rod-end heads, flange and threaded caps with the bore, thread, seal groove and port features machined in one set-up.
— OD 60 to 500 mm
— Up to 250 350 bar flange classes
— 45#, 40Cr, 42CrMo, ductile iron
Cylinder Piston Rods
Hard chrome plated rod,induction hardened on request, optional nickel underlayer for corrosive service.
— Chrome thickness and hardness stated
— Straightness per metre stated
— Salt-spray hours published, not omitted
Product Categories
The full cylinder component range grouped by make versus source,so you can see at a glance which parts we machine in house and which we supply through partners.
— Made by ORise
— Sourced via partners
— Eight product groups
View categories
Clevises, Mountings & Rod-end Bearing

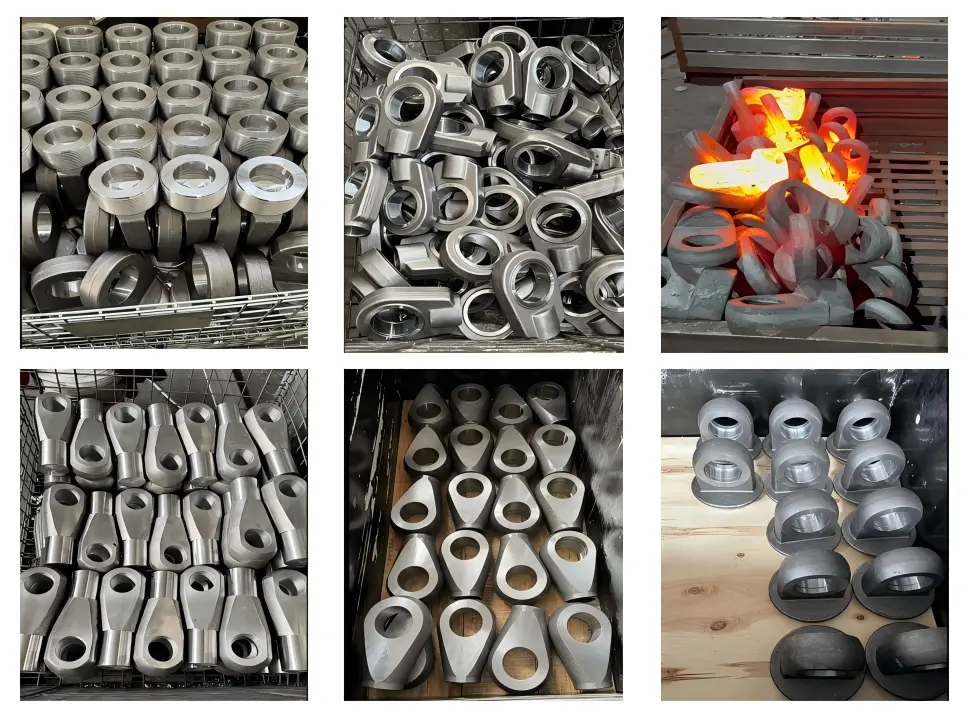

Rod eyes, clevises, trunnion mounts and pin
bosses, machined from forging, bar or plate as the drawing requires.
— Bore and bush seat tolerance as drawn
— Spherical bearing seats
— Weld preparation to the assembly drawing
Welded Cylinder Assemblies
Tube-to-head, tube-to-base and rod-to-eye
welded sub-assemblies, machined after welding where the drawing calls for it.
— Welder qualification records available
— Post-weld machining in one set-up
— Leak or pressure test on request
Not listed?
If the part is turned, bored, honed, ground, forging or welded, send the drawing. If it is outside our range we will tell you which process it needs rather than quote and subcontract it silently.
–
–
STANDARDS
Standards we work to
Naming the standard on the drawing removes an entire round of e-mail. These are the references our customers most often specify.
Tube
- EN 10305-1 — cold drawn seamless precision tube
- DIN 2391 — ST52 / E355 precision tube
- ASTM A513 / A519 — SAE 1026 mechanical tubing
- ISO 4394-1 — cylinder bore tube dimensions and tolerances
Rod
- 20MnV6, C45E, 42CrMo4 base grades
- ISO f7 diameter tolerance class
- ISO 9227 AASS — neutral salt spray test method
- Induction hardened depth and hardness stated per order
–
Cylinder assembly
- ISO 6020-1 / 6020-2 — 160 bar mounting dimensions
- ISO 6022 — 250 bar heavy duty series
- EN 10204 3.1 material test certificate with every shipment
- Welding under the ISO 9001 system; ISO 3834 not held
We state the standards we work to on every quotation and issue the matching certificate with the shipment. If a standard falls outside our scope we say so at enquiry rather than list it, because an unevidenced claim is the fastest way to fail a customer audit.
Features of Our Hydraulic Cylinder Components
- Built to withstand tough conditions.
- Engineered for maximum efficiency.
- Adaptable design for various applications.
Hydraulic components ready for assembly in your factory.
Working with us allows hydraulic cylinders manufactures to focus on assembly and increase their production capacity, while procurement of all kinds of metal parts is being handled by a professional manufacturer.
ORise Machinery provides a one stop solutions for hydraulic cylinder manufacturers. We can produce and deliver all kinds of metal components for hydraulic cylinders so that the factory can focus on the assembly and save time, money and efforts.
We are producing different forged and machined components such as clevis, gland, port(s), barrel, rod, piston, end cap among others. These parts are manufactured based on the customers technical requirements.
Precision Manufacturing& Customization: The Future of Hydraulic Cylinder Components.
In the world of hydraulic systems, the key to success lies in the perfect blend of advanced manufacturing capabilities and tailored solutions. At ORise Machinery, we pride ourselves on delivering both!
Our hydraulic cylinder components, including Guide Sleeves, Pistons, and Bearings, are designed and manufactured with the highest precision. We specialize in customizing these components to meet the unique demands of various industries. Whether you need high corrosion resistance, extreme temperature tolerance, or specialized materials, we’ve got you covered.
Our Capabilities:
• Advanced Manufacturing Equipment: We utilize state-of-the-art CNC machines, deep hole drilling equipment, and honing machines to ensure precision down to ±0.005mm.
• Customized Solutions: From special material selections(e.g., stainless steel, Alloy steel) to unique structural designs(e.g., integrated hydraulic valves), we offer comprehensive customization services.
• Quality Assurance: Our products undergo rigorous testing, including dimensional checks, surface quality inspections, and performance tests, to ensure they meet the highest standards.
Why Choose Us?
• Experience: Our team of experienced engineers and technicians has over 20 years of industry expertise.
• Flexibility: We offer full customization from design to production, supporting both small and large-scale orders.
• Global Standards: We adhere to international quality certifications, ensuring reliability and durability in every component.
Whether you’re in construction, manufacturing, or any industry that relies on hydraulic systems, ORise Machinery is your partner for precision, reliability, and innovation.
Send the drawing, not the enquiry form
Most cylinder component enquiries cannot be quoted without dimensions. Uploading the drawing removes three rounds of e-mail and gets a real answer in 48 hours.
